Germany recently increased its recycling targets to 95% for metals and 75% for plastics. Of that plastic, 70% must be mechanically recycled. The focus is shifting from collection numbers to material recovery within existing recycling systems.
When a major market introduces rules like this, packaging structures come under closer scrutiny. Multi-layer laminates and mixed-material formats are difficult to recycle and are therefore being reconsidered. As a result, many development efforts are moving toward simpler structures and mono-material designs that better align with recycling infrastructure.
However, recyclability alone does not define a viable packaging solution. Materials must still protect products from oxygen and moisture, seal consistently, withstand transport conditions, and run efficiently on high-speed production lines. A structure that meets recycling criteria but disrupts line performance or increases costs cannot scale in production.
This creates a central challenge for packaging R&D. Regulations are tightening, yet performance requirements remain unchanged. Development teams are reassessing materials, coatings, and manufacturing methods to ensure recyclable formats operate reliably on existing production systems.
The innovations highlighted in the following sections reflect this shift. They address recyclability while maintaining barrier performance, line stability, and compatibility with current manufacturing infrastructure.
1. Footprint International: Web-fed dry-molding of paper-based packaging
Running paper through a continuous forming system without tearing or structural inconsistency requires tight control over moisture and fiber behavior. Footprint International’s web-fed dry-molding approach is built around this constraint.

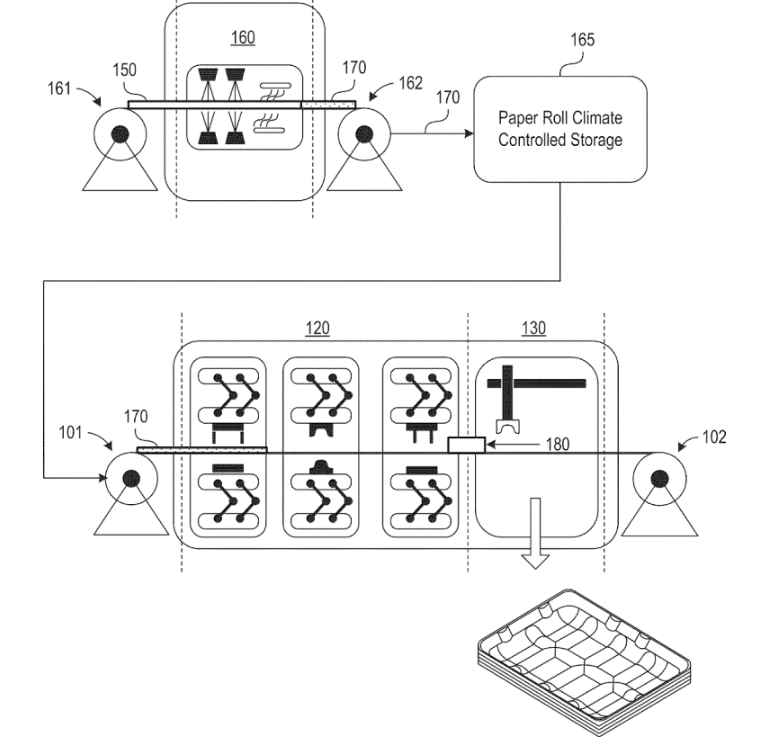

The system forms paper-based packaging directly from roll stock using a dry-molding process. Before shaping begins, the paper sheet is conditioned to adjust moisture levels. Additives may be introduced to improve the fibers’ response during forming.
Once prepared, the web is molded under controlled heat and pressure to define the final geometry. Additional steps, such as perforation or pre-slitting, help distribute strain; these are followed by pressing, die-cutting, and automated handling.
Conditioning units, forming presses, and synchronized downstream transport operate as an integrated line, enabling continuous conversion from roll stock to finished packaging.
Moisture is managed both before and during molding to improve fiber conformity within the mold cavity. This supports uniform wall thickness, stable density, and repeatable forming performance at an industrial scale.
2. UT-Battelle: Turning PET waste into new reusable building blocks
A chemical recycling route developed by UT-Battelle focuses on breaking PET waste down into reusable molecular building blocks rather than mechanically reprocessing the material.
The method selectively cleaves PET’s molecular chains to generate defined intermediate compounds. This controlled bond-breaking approach differs from mechanical recycling, which can reduce material quality over multiple cycles.
The reaction system combines PET waste with a catalytic mixture containing a nitrogen-based organic compound and a carboxylic acid. A chemically modified alcohol is introduced and heated under defined conditions to produce a terephthalate monomer with two reactive ends.

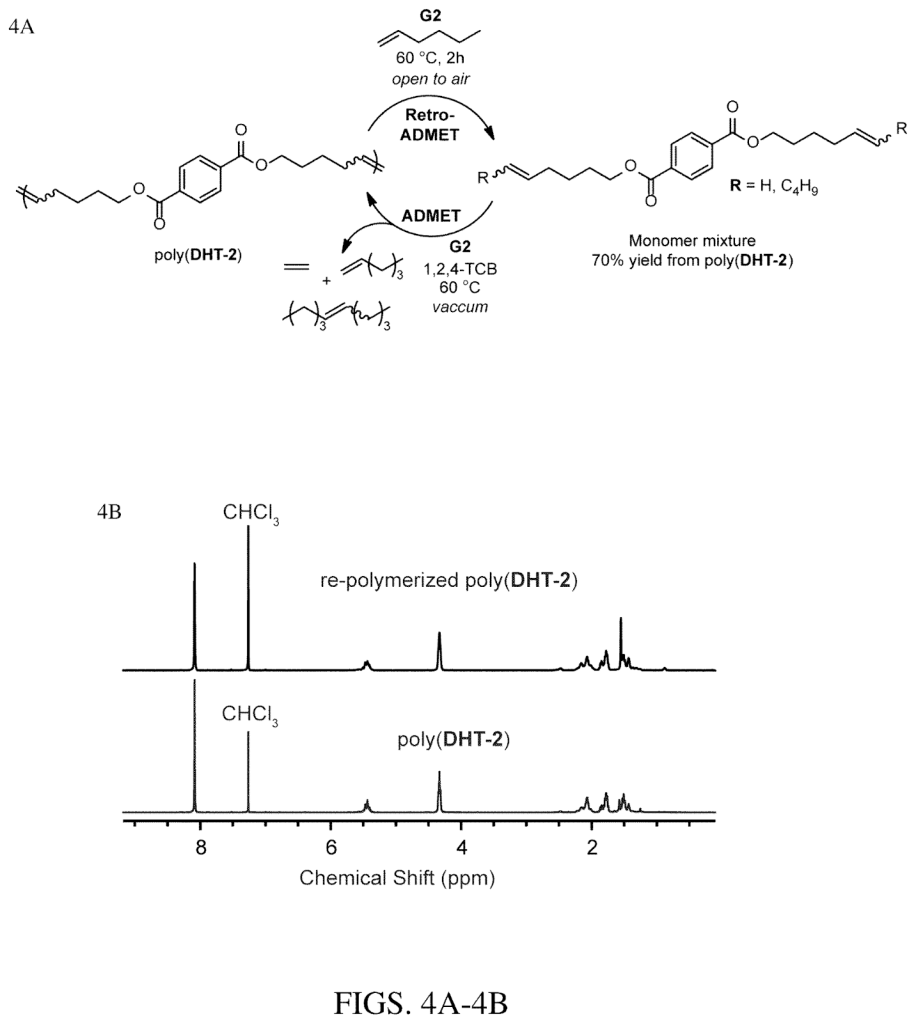

These monomers can be reassembled through acyclic diene metathesis (ADMET) to form semi-aromatic polyesters. This process is reversible: the resulting polymer can be broken back down into its original building blocks through a reverse ADMET reaction.
This reversible chemistry allows PET packaging waste to be chemically broken down and rebuilt into new polymer materials.
3. Huhtamaki Flexible Packaging: High-barrier laminate with improved machinability
Maintaining strong oxygen and moisture protection while keeping packaging materials stable on high-speed equipment/production lines remains a persistent engineering balance. Huhtamaki’s laminate design addresses this intersection of barrier performance and line reliability.
The structure is built with two outer polymer layers and a barrier layer positioned between them. Sometimes, the barrier layer uses a vinyl alcohol–based polymer, while the outer layers have polyolefin materials.
Surface properties are carefully controlled so that at least one exposed side of the laminate maintains a defined level of friction. This helps maintain smoother movement during forming, sealing, and filling operations.
By combining barrier protection with controlled surface behavior, the laminate enables more consistent processing of high-barrier formats, such as tubes and flexible packaging structures, on fast-moving production lines.
4. General Mills: Recyclable polyethylene cold seal film for food packaging
Sealing flexible packaging without heat requires a material that can bond securely at room temperature while remaining compatible with recycling systems. General Mills’ cold-seal film is structured around this requirement.
The film is constructed primarily from polyethylene and is designed to remain substantially free of polypropylene so the overall structure stays within a single material family. A polyethylene base layer is combined with a cold-seal adhesive on one side and a release layer on the other.
In certain cases, additional layers, like bonding or barrier layers, are positioned between the base and release layers.

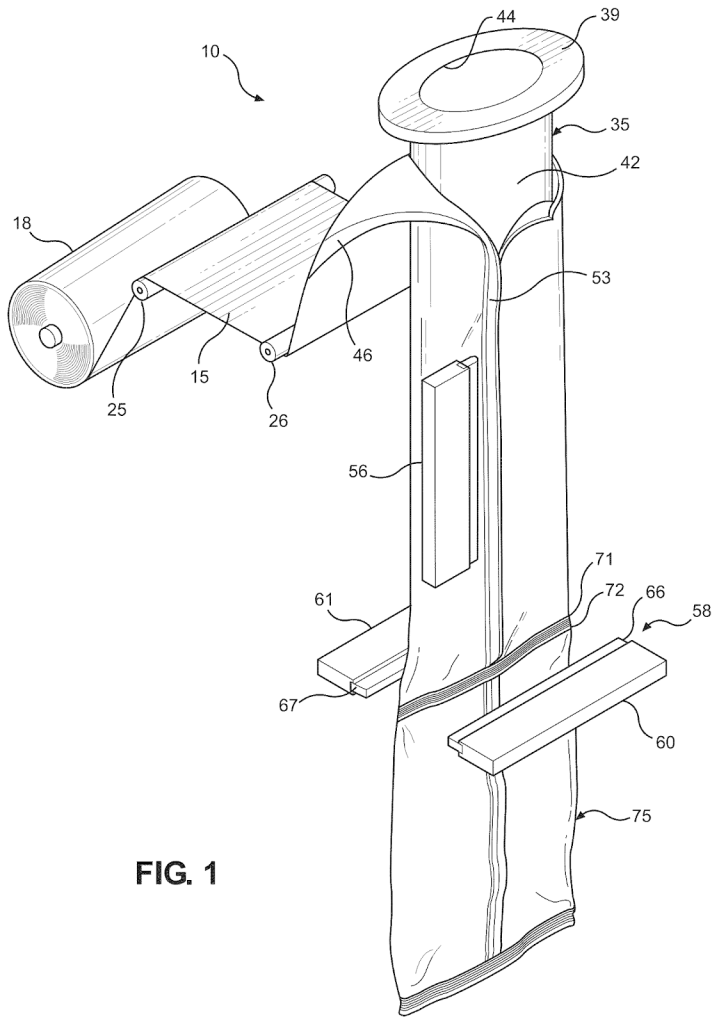

During packaging, overlapping sections of the film bond together with the cold-seal adhesive, forming longitudinal and end seals without thermal sealing.
The polyethylene-based construction enables the film to operate in form-fill-seal systems while maintaining recyclability.
5. Henan Yinjinda New Materials: Crystalline and recyclable polyester heat-shrinkable film

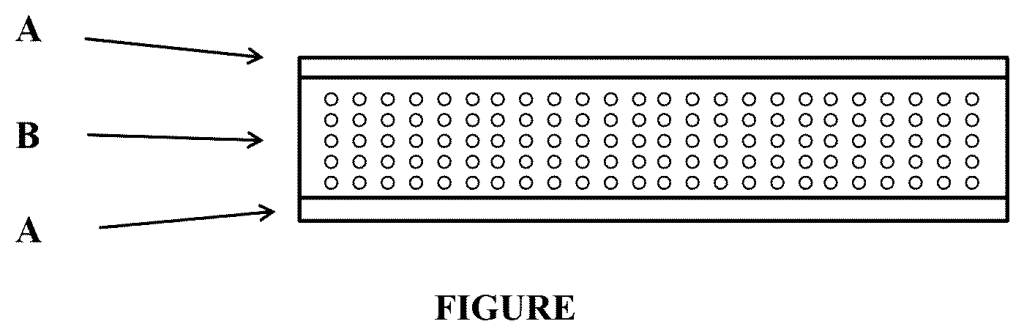

A three-layer ABA architecture underpins Henan Yinjinda’s heat-shrinkable polyester film. The structure is designed to improve crystallinity and recyclability while maintaining shrink performance without adding manufacturing complexity or increasing energy demand.
The outer A layers consist of polyethylene terephthalate glycol (PETG), polyethylene terephthalate (PET), and functional additives. The inner B layer uses modified PET combined with materials that promote crystal formation, extend polymer chain length, and create a porous internal structure.
Production involves preparing the materials for the outer and inner layers separately, followed by melt extrusion at 240–270°C. The extruded sheet is cooled, stretched in both machine and transverse directions under controlled temperatures, and then wound into the final heat-shrinkable film.
The porous core layer, combined with polyester-based outer layers, maintains shrink performance while supporting recyclability within PET material streams.
6. Haier: Fully enclosed paper-based cushioning for appliance packaging
Replacing expanded polystyrene in appliance packaging requires an alternative that can absorb impact while remaining recyclable. Haier’s solution uses a fully enclosed paper-based cushioning system integrated within a corrugated outer structure.
The packaging assembly consists of a corrugated frame that forms an internal chamber to hold the appliance. Inside this structure, a molded paper cushion sits in a dedicated enclosed section, providing impact resistance without the use of synthetic foam.
The cushion is produced through a wet molding process. Shredded paper, including recycled material, is soaked, placed into a mold shaped to match the packaging geometry, pressed to a defined density, and then dried.
The corrugated assembly comprises top pads, base pads, side walls, and corner supports. These elements surround and contain the molded paper cushion, maintaining structural stability during shipping.
The fully paper-based construction provides product protection while keeping the entire packaging system recyclable within paper recovery streams.
7. P&G: Fiber-based container for liquid conditioning compositions
Preventing leakage in fiber-based containers remains a key technical challenge, particularly when internal barrier coatings develop cracks, pinholes, or incomplete coverage during manufacturing or distribution. Procter & Gamble’s design addresses this risk in liquid conditioning packaging.

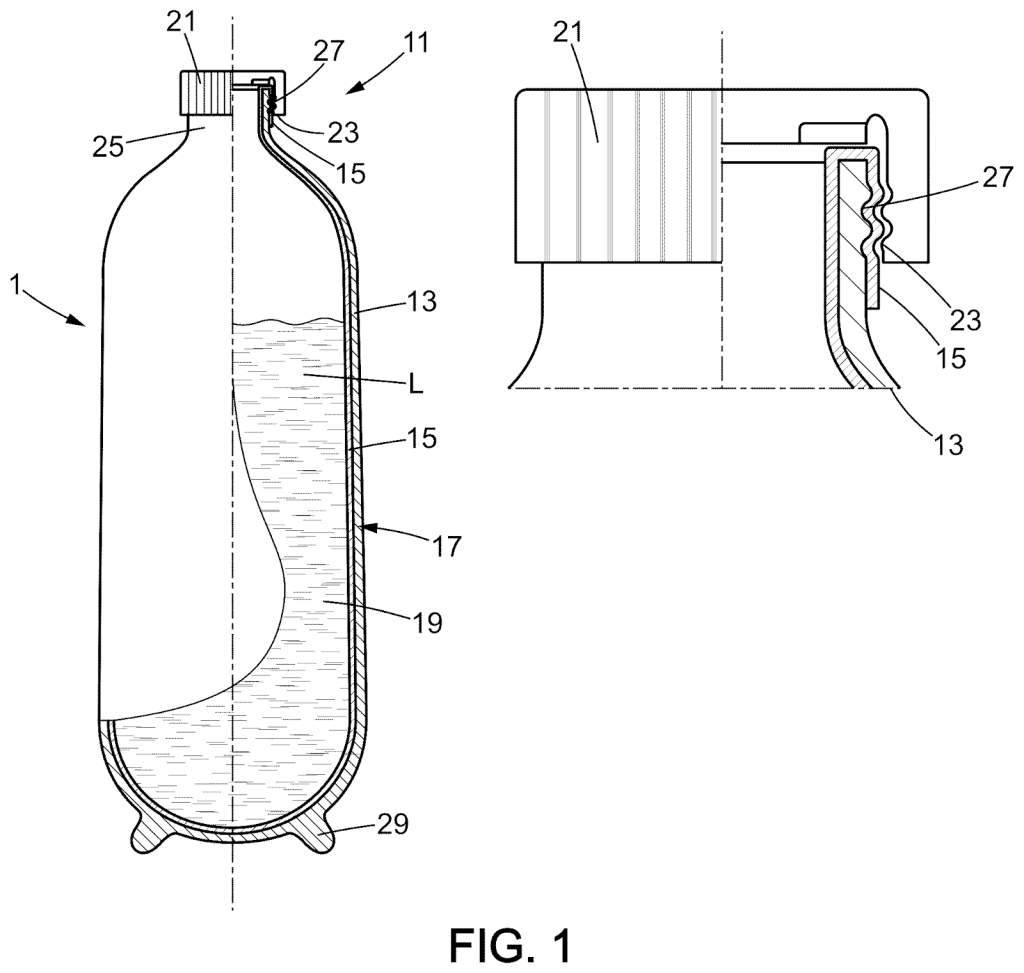

The container features a dimensionally stable outer shell made of compressed pulp, with a thickness of 0.2 to 2.0 mm. The inner surface is coated with a polymer that forms the liquid-holding cavity.
The liquid formulation contains a quaternary ammonium alkyl compound and is prepared with a lipid bilayer phase transition temperature (Tm) of at least 25°C. This temperature threshold reduces the risk of leakage even if coating defects expose the underlying pulp fibers.
The structure also allows measurable fragrance diffusion through the container wall, allowing scent perception without opening the package.
8. C.P. Flexible Packaging: Barrier coating with polymer matrix and nanoparticles
Improving moisture resistance without increasing material thickness requires a more efficient barrier layer. C.P. Flexible Packaging addresses this with a coated substrate designed to reduce water vapor transmission while lowering overall material use.

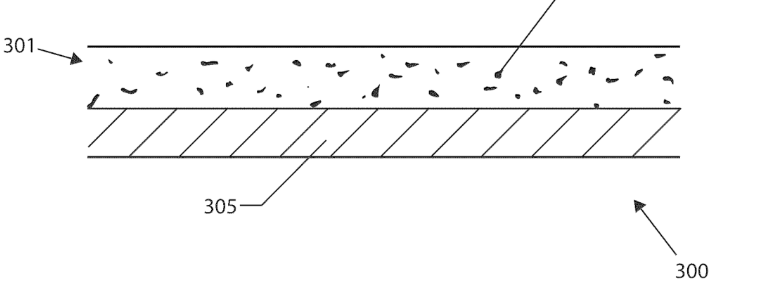

The structure consists of a base substrate covered with a barrier coating, followed by an ink layer positioned above the coating. The barrier layer contains a polymer matrix embedded with nanoparticles. The polymer component comprises high-molecular-weight materials such as polyurethane, while the nanoparticle phase comprises materials such as nanocellulose.
Testing data show that an 80-gauge substrate with this coating achieves lower water vapor transmission than a 100-gauge substrate without the barrier layer.
By dispersing nanoparticles within the polymer matrix, the coating improves moisture resistance while allowing thinner substrate construction.
9. EVOQ Nano: Polymer compositions with antimicrobial metal nanoparticles
Adding antimicrobial functionality directly into plastic materials requires stable dispersion of metal nanoparticles during standard thermoplastic processing. EVOQ Nano’s formulation integrates antimicrobial particles into polymer systems without altering conventional manufacturing steps.

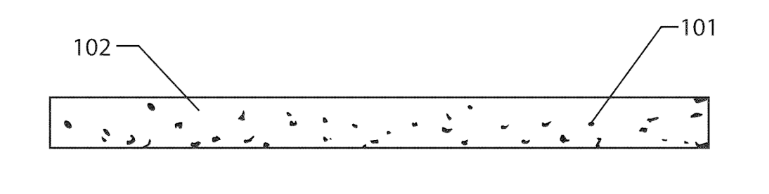

The approach begins with preparing a nanoparticle solution containing metal particles, such as silver, dispersed in a polymer-compatible carrier. This dispersion is blended with polymer granules or resin before extrusion or molding.
After mixing, the treated polymer can be processed into films, molded components, fibers, or other thermoplastic products using standard manufacturing equipment.
Testing results show reduced bacterial growth on treated materials compared to untreated controls.
Embedding metal nanoparticles in the polymer matrix imparts antimicrobial properties to the finished plastic product.
10. Smart Planet Technologies: High-performance nanocomposite barrier layers for packaging
Improving oxygen and moisture resistance in packaging films often depends on how effectively mineral particles are dispersed within the polymer layer. Smart Planet Technologies focuses on controlling particle distribution to increase resistance to gas and vapor transmission.

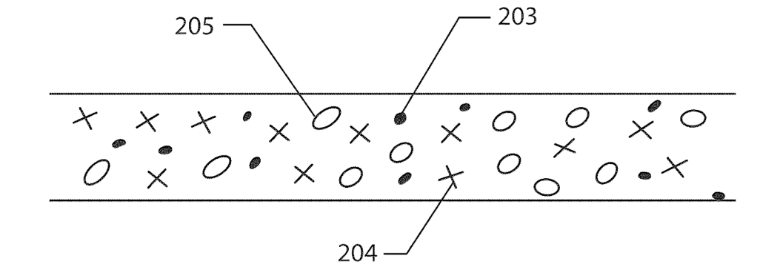

The barrier layer incorporates nano-, micro-, and colloidal-scale mineral particles within a thermoplastic matrix. Rather than simply adding fillers, the formulation aims to distribute these particles to increase the path length for gas and moisture transmission through the material.
The disclosed formulations include both single-size and multi-size particle distributions. Nanoparticles such as montmorillonite clay are combined with micro- and colloidal-scale minerals, including calcium carbonate and talc.
Nanofiller concentrations between 1% and 6% by weight improve barrier performance due to the high aspect ratio of the particles.
The resulting layers can be produced through blown film extrusion, extrusion coating, or lamination. They are suitable for single- or multilayer thermoplastic films and for paper-based coatings used in consumer and industrial packaging.
Conclusion
With these innovations, it is evident that the packaging development is moving beyond material substitution toward system-level redesign. The focus is no longer limited to replacing one polymer with another or adding a recyclable label. Instead, companies are rethinking how materials behave during processing, how layers interact within a structure, and how finished packs perform within existing recycling streams.
Several themes stand out. Barrier performance is being addressed through nanoparticle dispersion and laminate restructuring rather than added thickness. Fiber-based formats are being engineered to manage moisture and leakage at the material level.
Chemical recycling approaches target molecular reconstruction rather than mechanical reprocessing. At the same time, surface properties, shrink behavior, and seal mechanisms are being adjusted to maintain stability on high-speed lines.
What connects these efforts is the attempt to reconcile recyclability with performance under real manufacturing conditions. The direction is less about incremental improvement and more about aligning material science, process engineering, and regulatory compliance within a single design framework.
For R&D and innovation teams, this shift signals a broader change in how packaging problems are defined and solutions are built.
